xor Gate

1. XOr Gate

The Xor gate, known as Exclusive-OR, returns true when the inputs are different (one is 0, the other is 1).

2. Implementation (Logisim)

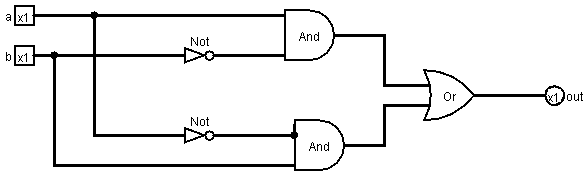

Representation of the xor gate in the logisim software using the Nxor xor the Not gates only.

3. Implementation (HDL)

Representation of the xor gate in HDL using previous gates.

CHIP Xor {
    IN a, b;
    OUT out;

    PARTS:
    Not(in=a, out=nota);
    Not(in=b, out=notb);
    And(a=a, b=notb, out=aAndNotb);
    And(a=nota, b=b, out=notaAndb);
    Or(a=aAndNotb, b=notaAndb, out=out);
}

Alternative solution

 CHIP Xor {
    IN a, b;
    OUT out;

    PARTS:
    Nand(a=a, b=b, out=nandAB);       // (a NAND b)
    Nand(a=a, b=nandAB, out=nandA);   // (a NAND (a NAND b))
    Nand(a=b, b=nandAB, out=nandB);    // (b NAND (a NAND b))
    Nand(a=nandA, b=nandB, out=out);  // Final XOR
}
