Mux Chip

1. Mux Chip

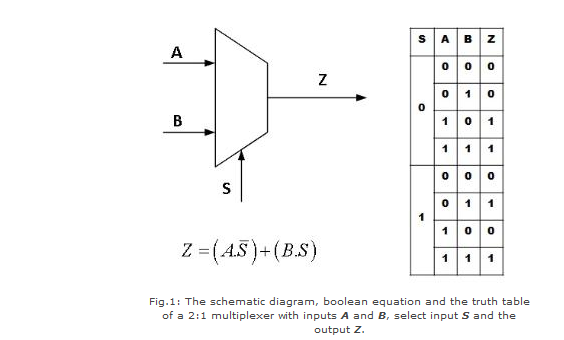

A Multiplexer, is a three-input bit chip that uses one of the inputs, called the “selection bit” (sel), to select and output one of the other two inputs (a or b).

When sel = 0, the output is a.

When sel = 1, the output is b.

2. Implementation (Logisim)

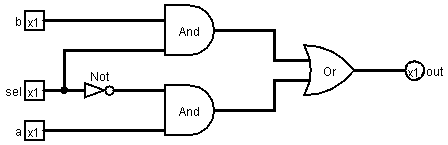

Representation of the Mux Chip in the logisim software using the previous gates.

3. Implementation (HDL)

Representation of the Mux Chip in HDL using previous gates.

CHIP Mux {
    IN a, b, sel;
    OUT out;

    PARTS:
    Not(in=sel, out=notsel);     // Invert the selection bit
    And(a=a, b=notsel, out=aAndNotSel);  // If sel=0, pass 'a'
    And(a=sel, b=b, out=bAndSel);        // If sel=1, pass 'b'
    Or(a=aAndNotSel, b=bAndSel, out=out); // Output the selected value
}
