And Gate

1. And Gate

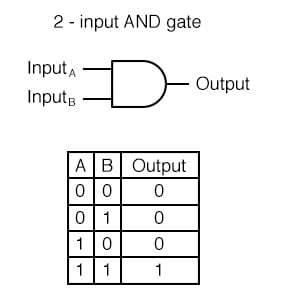

The And gate returns true, only when both of the inputs are true.

2. Implementation (Logisim)

Representation of the And gate in the logisim software using the Nand and the Not gates only.

3. Implementation (HDL)

Representation of the And gate in HDL using previous gates.

CHIP And {
    IN a, b;
    OUT out;

    PARTS:
    Nand(a=a, b=b, c=notout);
    Not(in=notout, out=out);
}
